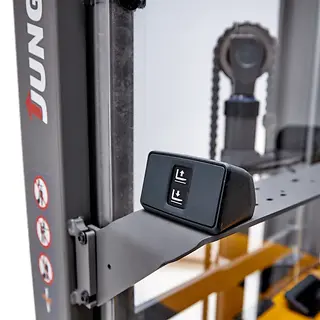

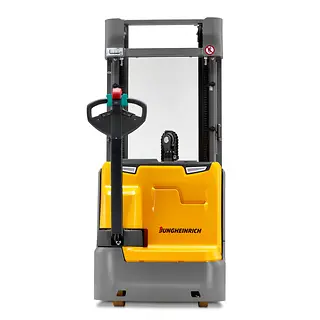

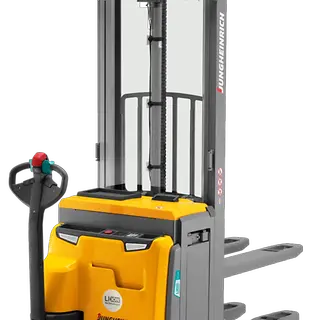

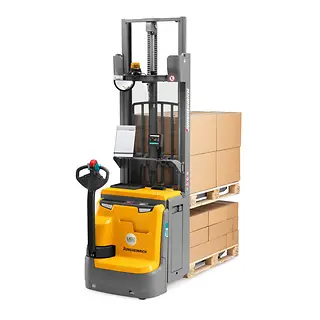

The EJC 212z/214z/216z/220z pedestrian stackers are experts at the stacking and removal of goods. Designed for high performance at lift heights of up to 6000 mm (EJC 214z/216z), high residual capacities and long uptimes, it achieves maximum throughput. The electronically controlled, powerful lift motor ensures smooth and quiet lifting or lowering of the load at the touch of a button: From smooth depositing, rapid lifting and lowering or precisely approaching the racking – the operator has everything under control at all times.
The powerful 24-V 3-phase AC drive motor with its optimised efficiency achieves high speeds and excellent acceleration in any situation. liftPLUS (optional) enables the EJC 214z/216z to achieve a significantly higher lift speed when lifting the forks (up to 400 kg) in comparison with the production version.
The unique feature of this truck is its support arm lift: The additional ground clearance enables the operator to effortlessly overcome uneven floors, ramps, crossing plates or loading bridges. The capacity in low lift operation is 2.0 t.
2 pallets can also be transported simultaneously, doubling the speed of operation compared to single pallet transportation (optional). High residual capacities are ensured by the robust and rigid frame made of 8-mm thick steel, the stable 4-point suspension and the torsion-resistant mast.

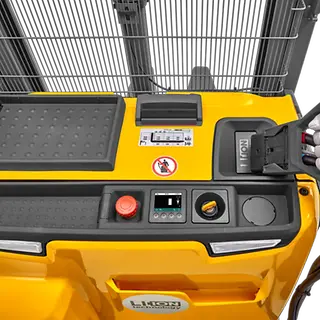

Electric tiller steering (optional) provides low steering forces for fatigue-free steering, especially when driving with the tiller vertical using the crawl speed button. A built-in charger (optional) allows the integrated battery to be reliably charged at any mains socket. This charger is also optionally available with a rapid charging function. Rapid lateral battery exchange enables the truck to be used in multi-shift operations.
Intelligent control and advanced drive system
Versatile with support arm lift
Safe and comfortable stacking and retrieval
High performance in every situation
Designed for easy servicing

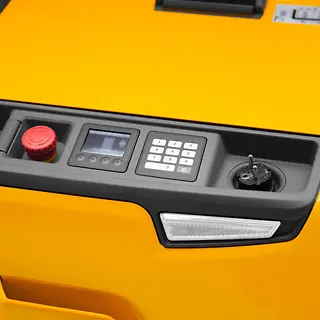

Fully informed at all times
Long operating times available with lead-acid battery
|EJC 212z||1200 kg||6000 mm||6 km/h||1981 mm||24 V|
|EJC 214z||1400 kg||6000 mm||6 km/h||2002 mm||24 V|
|EJC 216z||1600 kg||6000 mm||6 km/h||2002 mm||24 V|
|EJC 220z||2000 kg||6000 mm||6 km/h||2002 mm||24 V|
