Electric pedestrian controlled truck with stand-on platform

Electric stacker truck 1600 kg

2830 - 5430 mm
1600 kg

Electric tiller steering for fatigue-free operation
Proportional hydraulics for precise and gentle control
curveCONTROL for enhanced safety and great comfort
CAN bus technology makes fault diagnosis and troubleshooting easier

ERC BB 216

The efficient and versatile ERC BB 216 electric stacker is particularly well suited for economic indoor transport over longer distances, as well as for stacking and retrieval operations up to 5,500 mm. Equipped with a folding stand-on platform and support arm lift, it can be used very flexibly over long distances. The multifunctional tiller arm is intuitive to use and can be operated with the right or left hand. This contributes to greater efficiency and safety in your warehouse. The robust quality components are beneficial for reliable operation and lower wear and tear. Proportional hydraulics enable the operator to pick up loads accurately and safely. A variety of practical configurations greatly improve operational safety while increasing driving pleasure for the operator.

Features

Innovative drive technology

High efficiency levels with excellent energy management.
Rapid direction change.
Maintenance-free drive motor.

Energy-efficient operation

Battery and components are protected and efficiency is increased thanks to economic energy management.
Automatic lift cut-off function significantly reduces energy consumption.
Long service life with battery capacity up to 240 Ah.
Energy recovery thanks to regenerative braking on deceleration.

Easy stacking and retrieval

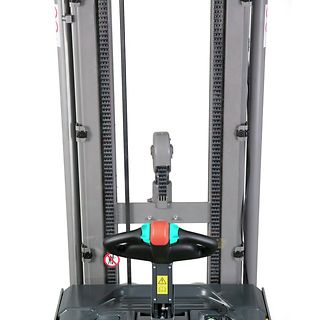

Intuitive control of all lifting and lowering functions with the multifunctional tiller arm.
Precise and gentle lifting of the load by proportional hydraulic control.
Four-wheel concept for high stability.

Comfortable and safe operation

Fatigue-free work due to electric tiller steering.
curveCONTROL automatically reduces speed when cornering.
The sprung stand-on platform effectively removes the strain on the operator's spine.
Soft padded side arms ensure a comfortable posture for the operator when cornering.

Service-friendly design

Body panel is easy to open with just 2 screws.
Service access ports on front apron.
CAN bus technology makes fault diagnosis and troubleshooting easier.

Strong and concise design

8-mm thick frame together with the iron battery cover maximises the truck’s lifetime.
The side arms and stand-on platform are integrated and always remain within the truck body when folded, giving increased compactness.
High-strength rolled steel and flush design together with well positioned components provide better capacity for height retention and a large window of visibility.

Additional equipment

Flexibility of lift heights, available at 2,830 mm, 3,530 mm, 3,930 mm, 4,530 mm and 5,430 mm.
PIN code and transponder as standard.

Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
ERC BB 216 ZT 2900	1,600 kg	5,430 mm	7 km/h	1,896 mm	24 V
ERC BB 216 ZT 3600	1,600 kg	5,430 mm	7 km/h	1,896 mm	24 V
ERC BB 216 DZ 4000	1,600 kg	5,430 mm	7 km/h	1,896 mm	24 V
ERC BB 216 DZ-Plus 4000	1,600 kg	5,430 mm	7 km/h	1,896 mm	24 V
ERC BB 216 DZ 4600	1,600 kg	5,430 mm	7 km/h	1,896 mm	24 V
ERC BB 216 DZ 5500	1,600 kg	5,430 mm	7 km/h	1,896 mm	24 V
