Automated Guided Vehicle System (AGV-S) 1.4 - 1.6t

11,000 - 13,000 mm
1,400 - 1,600 kg

Gradual automation
Maintenance-free synchronous reluctance motor
Different options for pallet stacking and retrieval
Optional on-board battery charger for 24/7 operation
Planning, implementation and after sales support from a single source

EKX 514a/ 516ka/ 516a

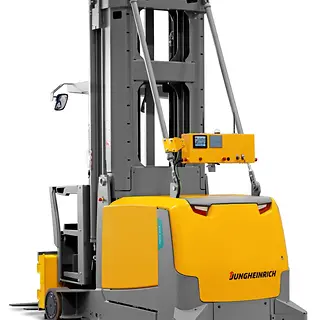

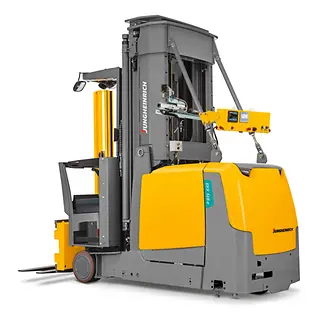

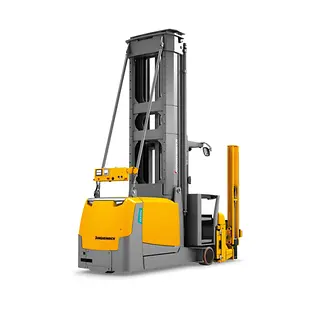

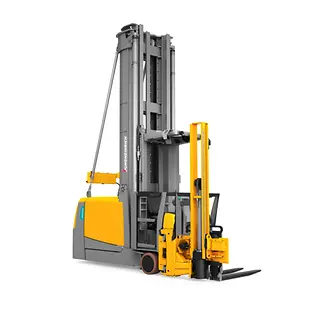

Our powerful and modular EKX 516a excels as an Automated Guided Vehicle System (AGV-S) based on our proven EKX electric high level combination order picker/three-lateral stacker. The EKXa is characterised by maximum performance at lift heights up to 13,000 mm and sets benchmarks in automated narrow-aisle warehouses.Equipped with an 80-V drive system and a maintenance-free synchronous reluctance motor, it achieves new performance standards while reducing energy loss at the same time. Thanks to the optional integration of an on-board battery charger, bus bar and current collector, it is optimally prepared for 24/7 use. The field-tested wire guidance in combination with RFID transponders ensures precise positioning at the storage location as well as automatic aisle changes. With the option of automation in stages, you can benefit from maximum availability, efficiency and performance of your warehouse processes.

Features

Established standard truck used as basis

Standard truck EKX Series 5 high-rack stacker
In combination with extensive safety technology as well as automation and navigation components.

Efficient drive technology and equipment

80-V drive.
Maintenance-free synchronous reluctance motor.
RFID reader for positioning in narrow aisles.
Patented regenerative lowering and braking for maximum energy recovery during operation.
Optional equipment with on-board battery charger, bus bar and current collector for efficient 24/7 use.

Process reliability in the warehouse

Reliable wire guidance technology for safe driving anywhere in the warehouse.
WLAN technology allows the truck to communicate with upstream management and control systems.

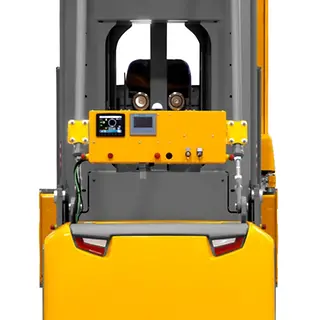

Everything in view with the FTS control console

The graphic display on the AGV control panel displays all the information relating to the AGV in use.
Depending on the project-specific requirements, individual customer functions can be specially implemented and activated for the respective system.

Precise navigation

Millimetre-accurate positioning of trucks and loads at the defined stations.
Project- and environment-specific design and implementation.

Gradual automation

Successive automation for future-proofing your narrow-aisle warehouse.
warehouseNAVIGATION for highly precise approach and positioning of trucks and loads at the defined stations to relieve the operator.
Semi-automation with warehouseNAVIGATION boosts throughput by up to 25 percent.
In fully automatic mode, autonomous manoeuvring in storage aisles and reliable completion of assigned transport and storage tasks.
WLAN technology allows the truck to communicate with upstream management and control systems.



Model Overview

Model	Load capacity	Lift height	Travel speed	Battery voltage
EKX 514a	1,400 kg	11,000 mm	10.5 km/h	80 V
EKX 516ka	1,600 kg	12,000 mm	12 km/h	80 V
EKX 516a	1,600 kg	13,000 mm	12 km/h	80 V
