Stage AM V05

Hand pallet truck 0.5t

  • 390 mm
  • 500 kg
  • Manually adjustable fork width (140-585 mm)
  • Particularly quiet run for usage in retail areas
  • Energy and time-saving fast lift for up to 120 kg
  • Precise pump hydraulic system and special lowering valve
  • Ergonomic tiller for right and left hand use alike

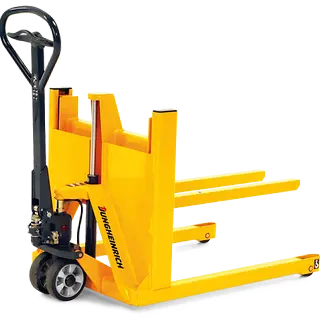

AM V05

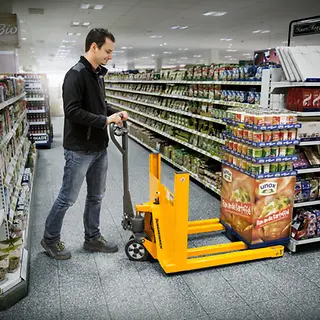

The manoeuvrable and flexible AM V05 are the ideal hand pallet trucks for all situations where quarter, half and special pallets have to be moved. For the transport of display pallets, in retail areas for example, the fork width can be manually adjusted, in the range of 140 to 585 mm, to fit special pallets. For application in retail areas with customer contact the AM V05 run particularly quiet. The tiller head, which can be used by left- and right-handed operators alike, allows for fatigue-free work shifts, due to its ergonomic design and ensures the manoeuvrability in any situation. With the fast lift and the optimised lowering valve goods can be moved fast, safely and efficiently. By the way, this also counts for standard euro pallets. As a matter of course you profit with the AM V05 from our high durability with the applied hardened steel, bushed wheels, the welded tiller mounting and the extremely low-maintenance joints.


Model Overview

Model Load capacity Lift height Overall length
AM V05, M V05760x955, C-GN 500 kg 390 mm 1,405 mm
