Stage ETV 114n_116n_118n_120n

Elektro-Schubmaststapler 1400 / 1600 / 1800 / 2000 kg

  • 5,000 - 11,510 mm
  • 1,400 - 2,000 kg
  • Drive, lift and steering motors use 3-phase AC technology
  • Improved manoeuvrability through compact frame design
  • Electric 180° steering and integrated sideshift fitted as standard
  • Smooth hydraulic operation with soloPILOT control lever
  • High operating safety with curveCONTROL

ETV 114n/ 116n/ 118n/ 120n

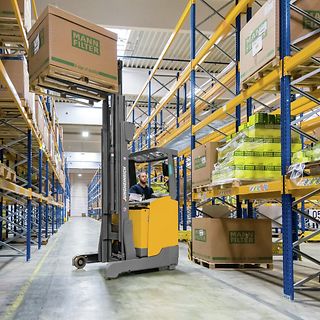

Jungheinrich ETV 1n reach trucks provide the best solution for cost-effective stacking and retrieval at high lift heights and in confined spaces. Be it when handling pallets (operating in drive-in racking), in narrow or low areas, or single shift or multi-shift applications, the ETVn Series 1 reach trucks are suited to every application, with four different capacity ranges.

Features

Model Overview

Model Load capacity Lift height Travel speed Overall length Battery voltage
ETV 114n 1,400 kg 9,020 mm 10 km/h 2,346 mm 48 V
ETV 116n 1,600 kg 10,700 mm 10 km/h 2,418 mm 48 V
ETV 118n 1,800 kg 9,020 mm 10 km/h 2,518 mm 48 V
ETV 120n 2,000 kg 11,510 mm 10 km/h 2,518 mm 48 V
